I was engaged in building couple of DC's, I tried my best to build the best keeping TIA 942 standard as based, all had two network path, two power supply from different sources, 2+1 redundant cooling system, fire rated the whole setup for 2 hours. used Novac as the fire extinguishing system , best in the world, the network had 128 gigabit back bone, more than you will need, state of the art Juniper networking equipment were used. BMS from leading brands.
Click Images to See in Large Image
1. My First Views on DataCenter Rooom
2. My First Views on DataCenter Rooom
3. My First Views on DataCenter Rooom
4. After DC room allocated, now with 2 hours rated firewall in place

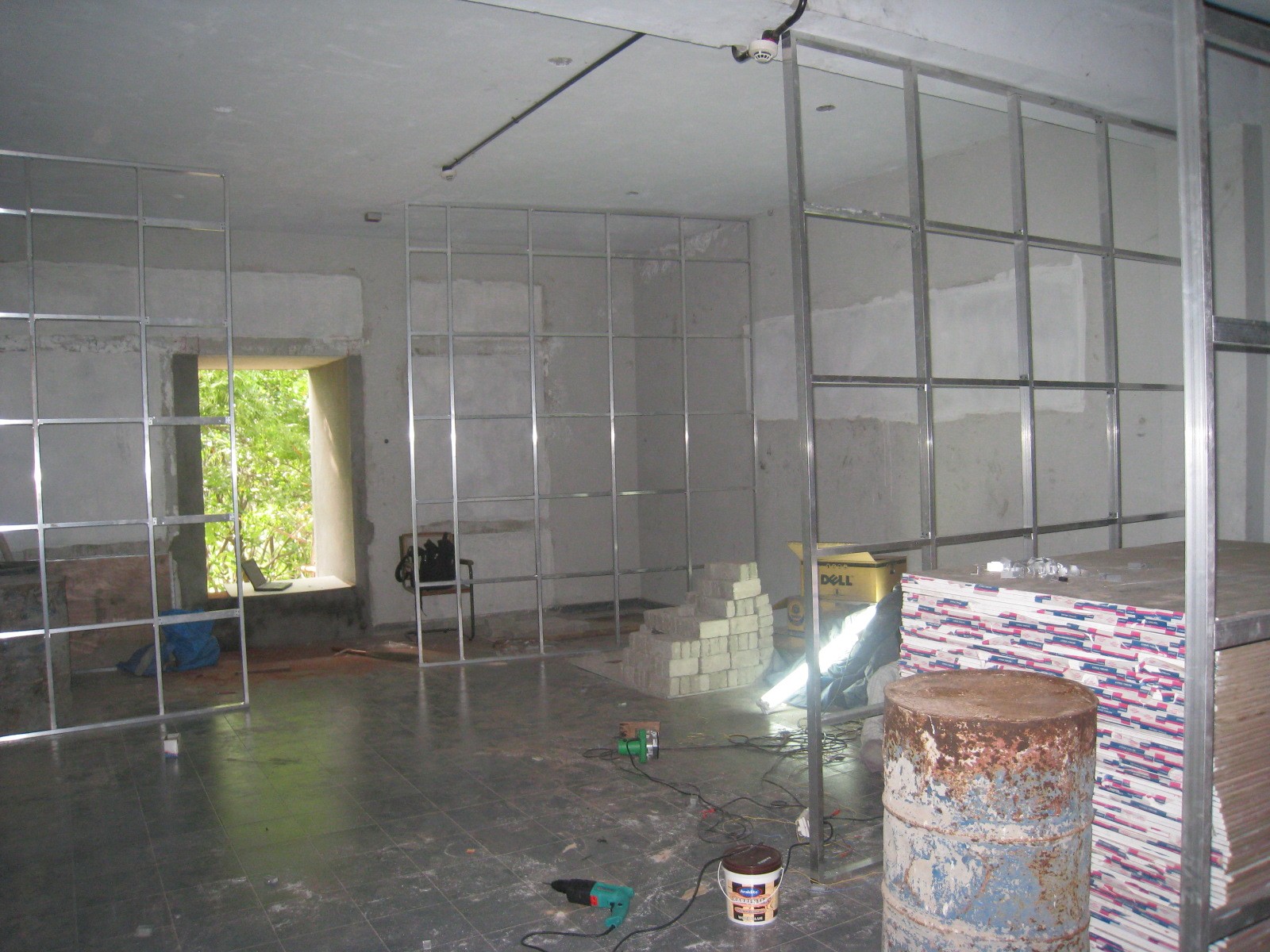

5. Frame work internal room with 2 hours fire rated separation walls, for Network, DC operations and Server room
6. Stacks for fire proof, 2 hours fire rated panels

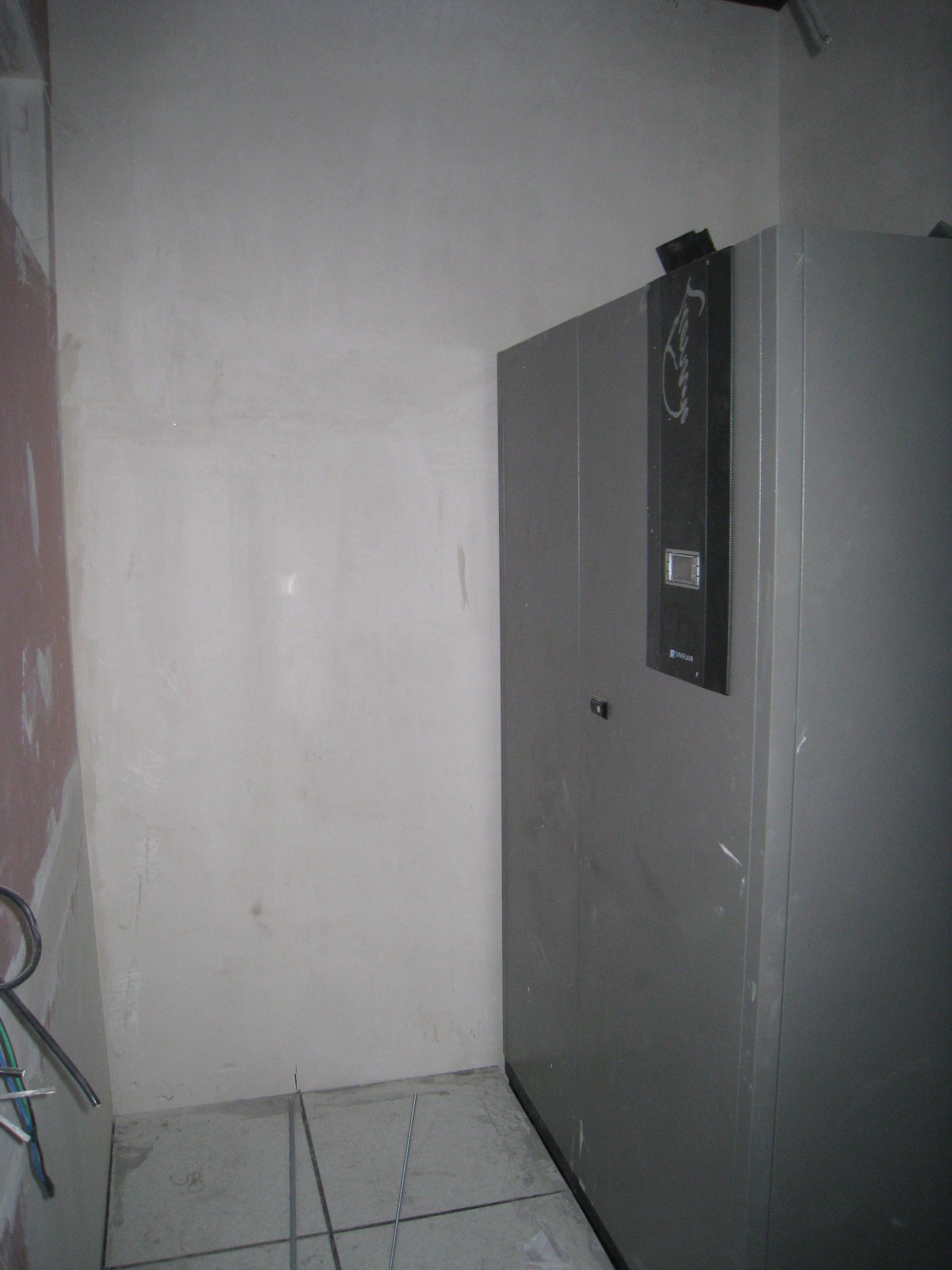

7. Precision Air Conditioners bottom flow, from Emerson
8. 2No 128 KVA USP from Emerson with 98% power-factor
9 Partion for Network Room
10. Nitrite Rubber for walls for insulation. saving power/expenses

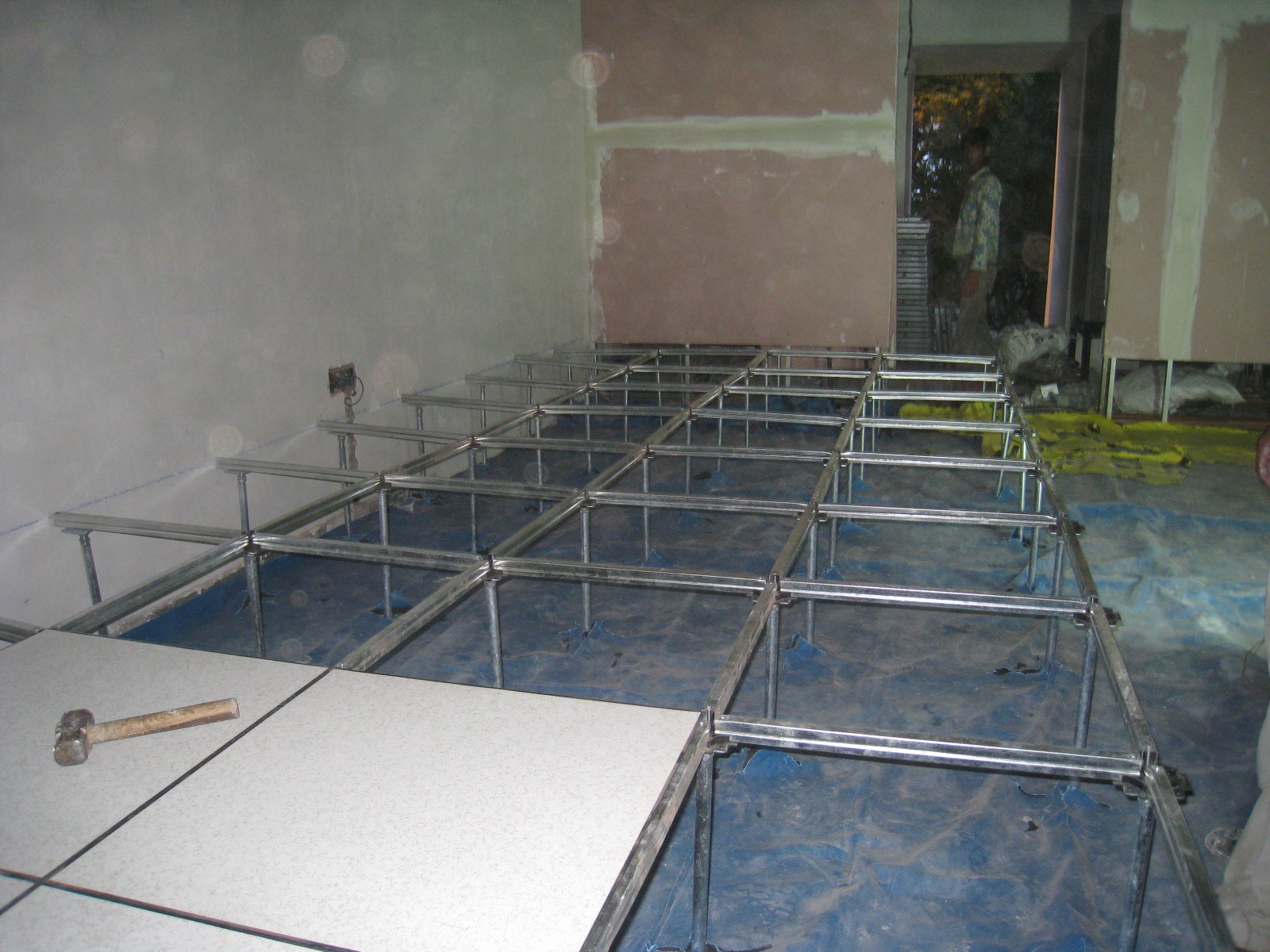

11. False floor for effect bottom cooling for server racks, the floor is also covered with nitrite rubber
12. Precision Air Conditioners in 2+1 redudancy model, we will never run out of cooling
13. After the flooring is covered with removable tiles

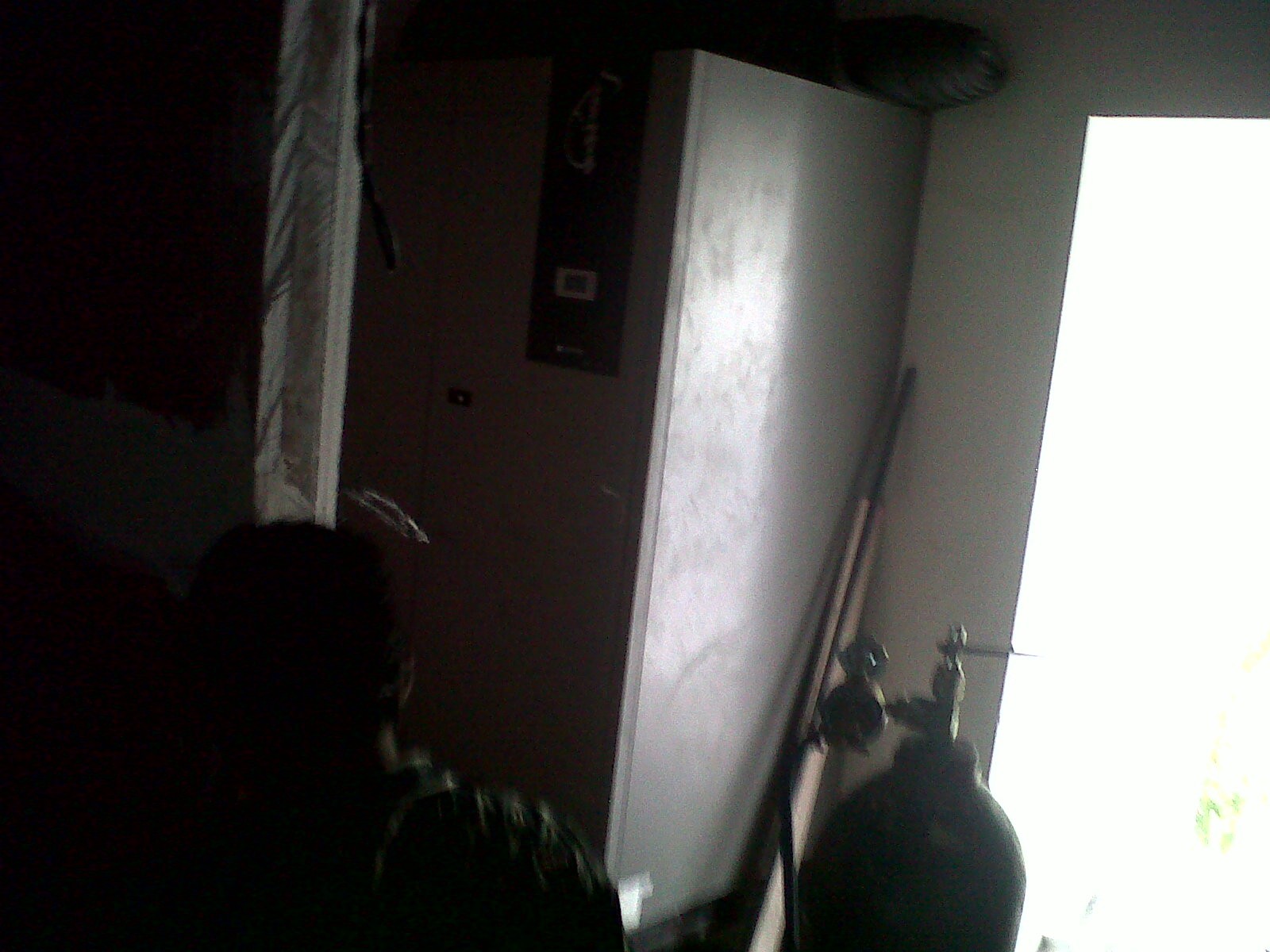

14. Operational Precision Air Conditioner
15. 2 hours rate DC doors installed

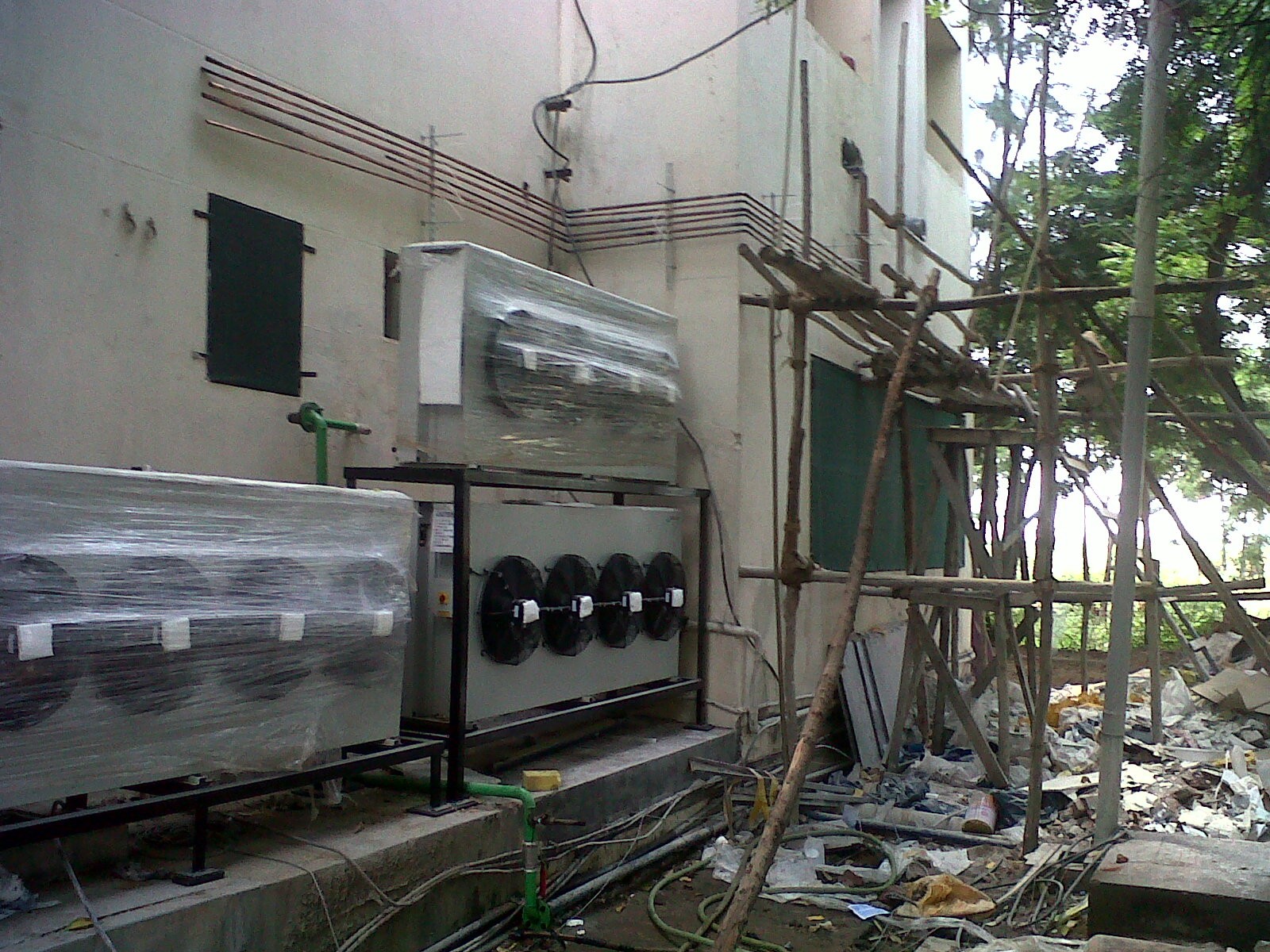

16. Our door units for the precision air conditioner
17. High efficiency LED lights in operations
18. Our door units for the precision air conditioner
19. Power DB Panels in side DC, in redundancy one for each UPS, 100% reliable power supply backed by two 129 KVA ups and two 150 KVA Generators
20. Metal 2 Hours Fire Rated Main DC Door, opening controlled by Bio Metric devices
21. Getting the Server Racks Ready
22. Scroll Compressor Used for variable cooling capacity, it can vary from 1 ton to 10 tons, saving energy when possible and cooling when needed
23. Server Racks after assembled, ready for servers
24. Work in progress
25. BMS room, with fire control and detection, rat/snake repellents, power, network and DG monitoring centre
26. Satisfying view of the racks

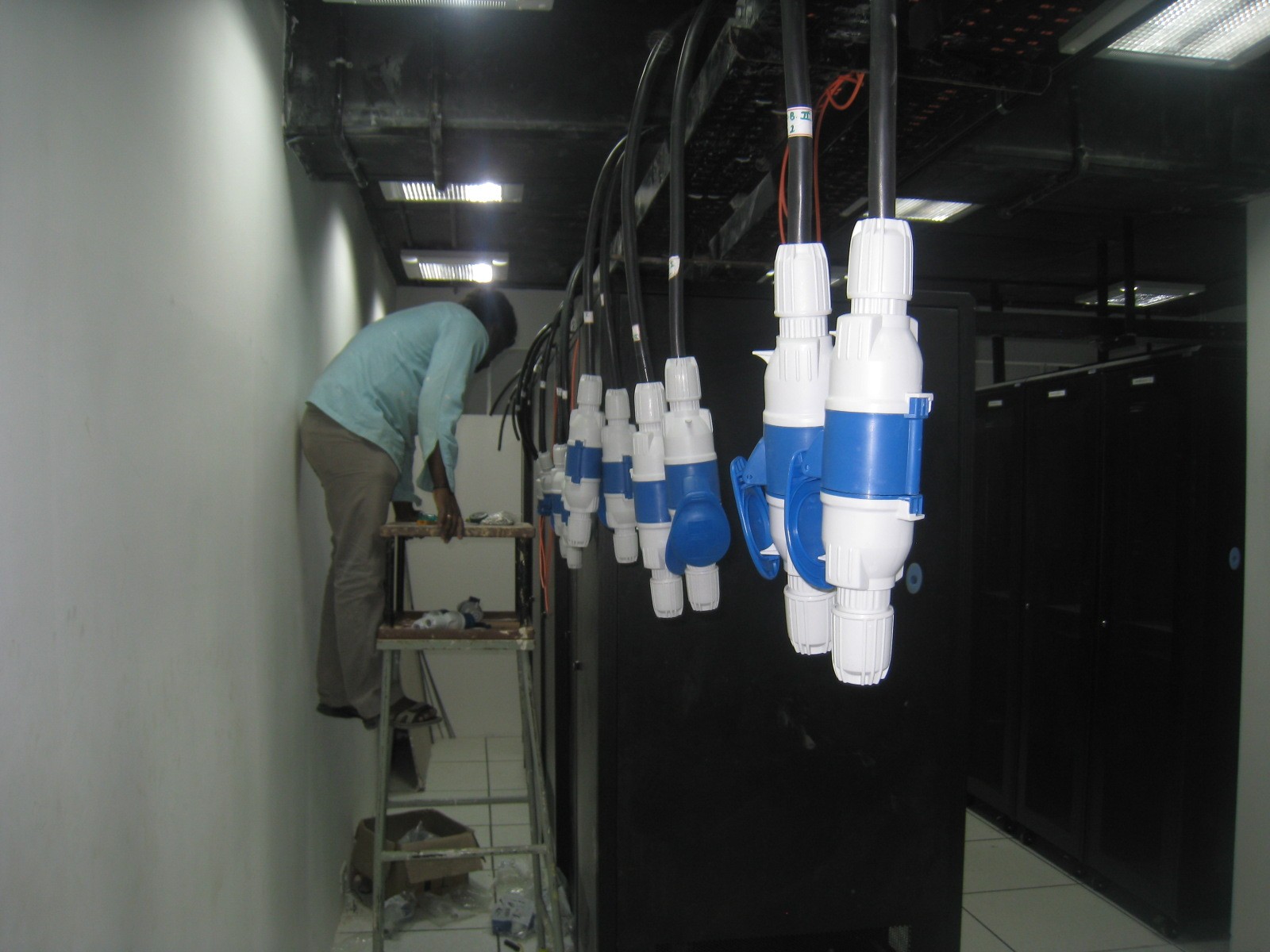

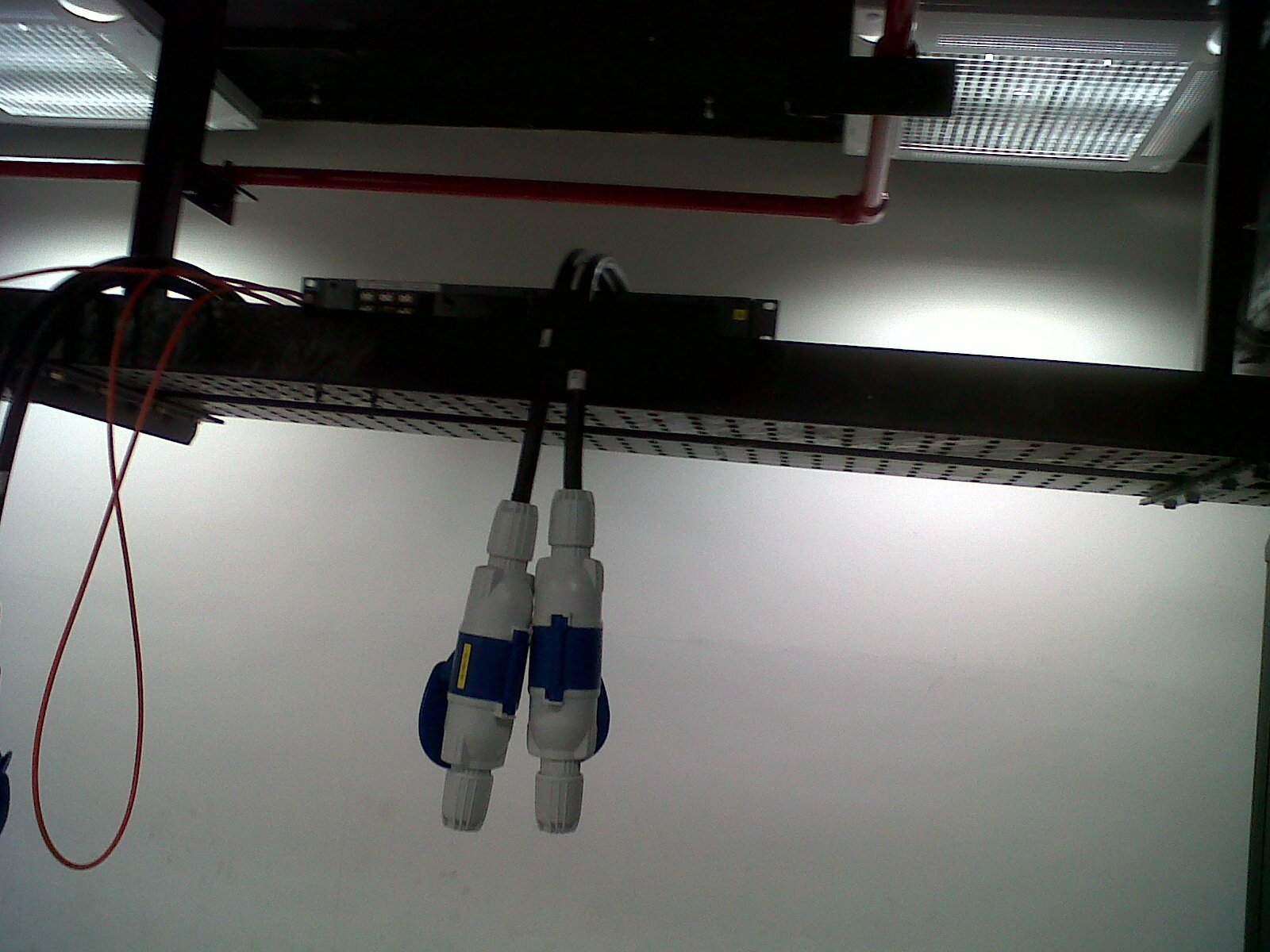

27. Top of the Rack power supply with lockable cable connectors, for fail safe operation

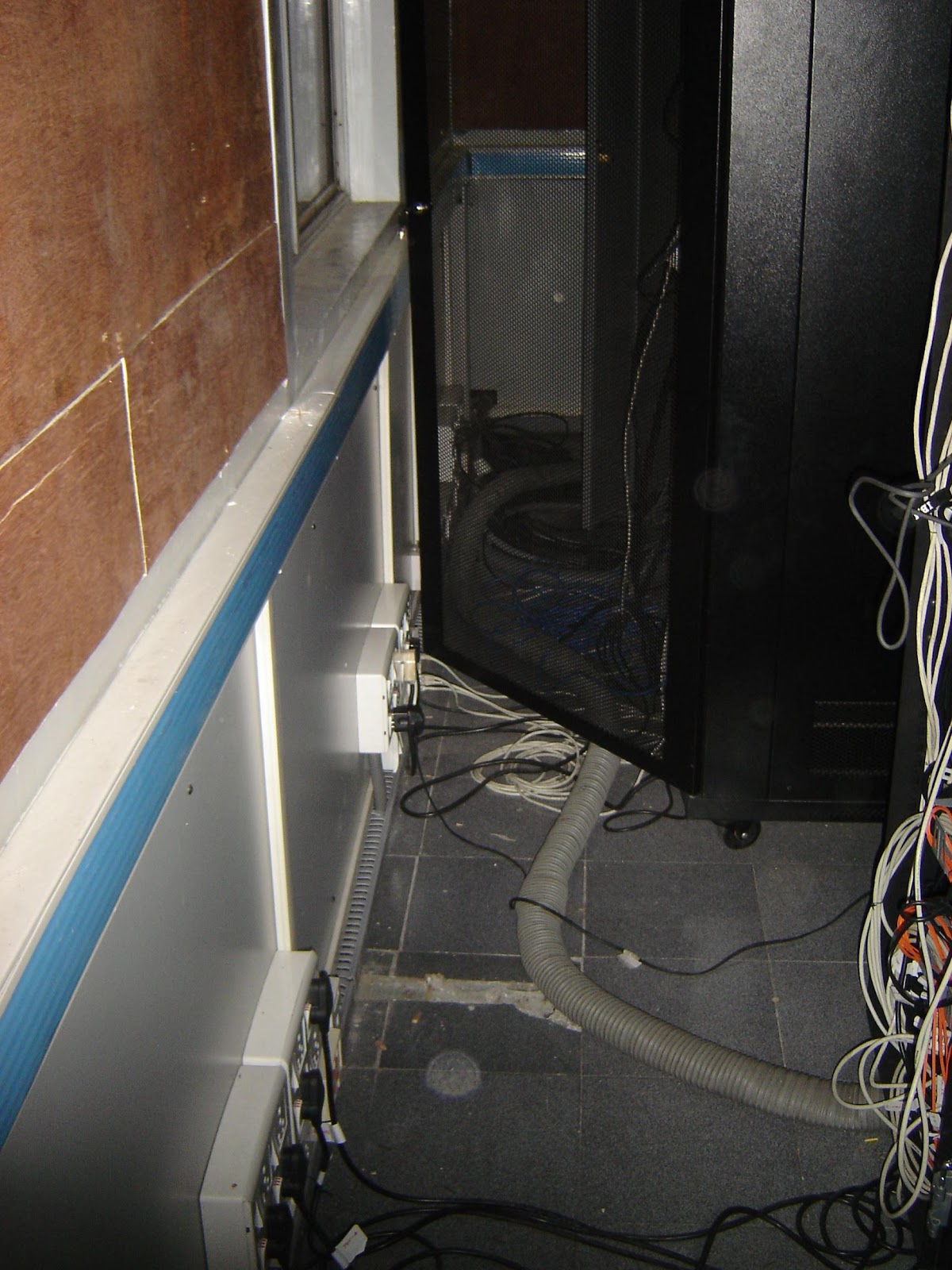

28. Cable installation in progress
29. Fail over for AC unis for UPS Room
30. Raw power switch gear to handle EB and Generator Switching with out any human intervention,interlinked with BMS for operation efficiency
31. Power Supply for Network Racks
32. BMS Wall panel
34. Used Novac Fire Suppressing System, expensive by environment friendly and equipment will clean even after the gas is discharged in case of fire.
